SPECIFICATIONS

Application: Industrial Automatic

Beam pitch: 20

Brand Name: NoEnName_Null,DAIDISIKE

Consumption current: <=200mA

Description: Safety grating infrared sensor sensing switch, Safety light curtain

Detection distance: 30 ~3000mm. 30~6000mm

Features: Multi-function

Hign-concerned Chemical: None

Model Number: DQC12-20-220

Mounting Type: Stamping machine installation

Origin: Mainland China

Output: DC12-24v NPN

Place of Origin: Guangdong, China

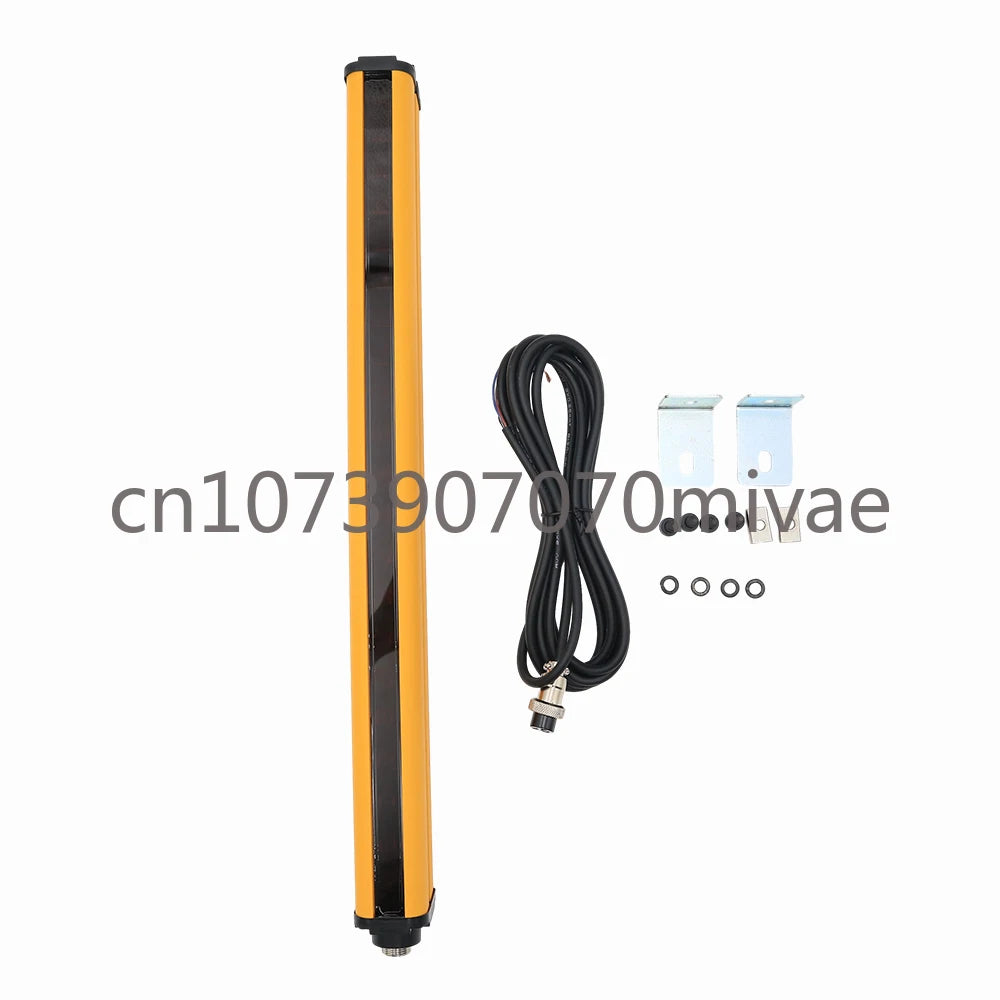

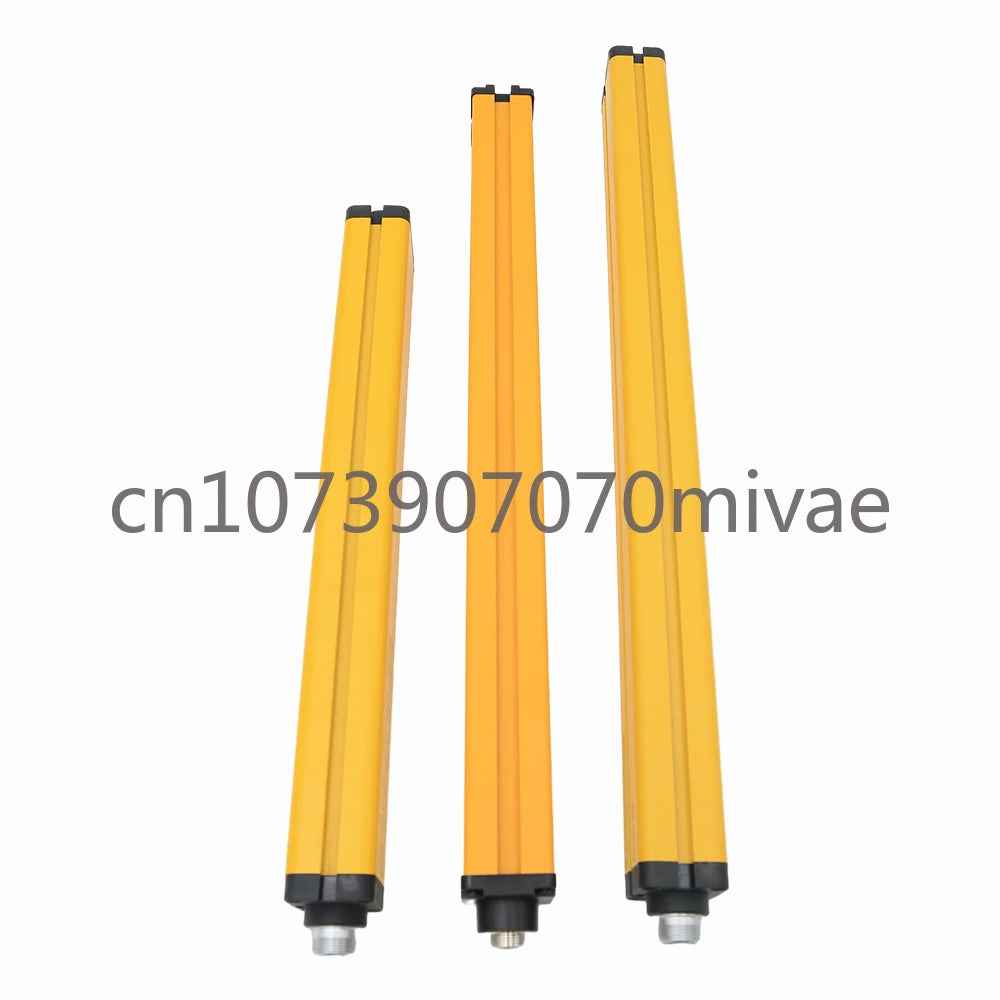

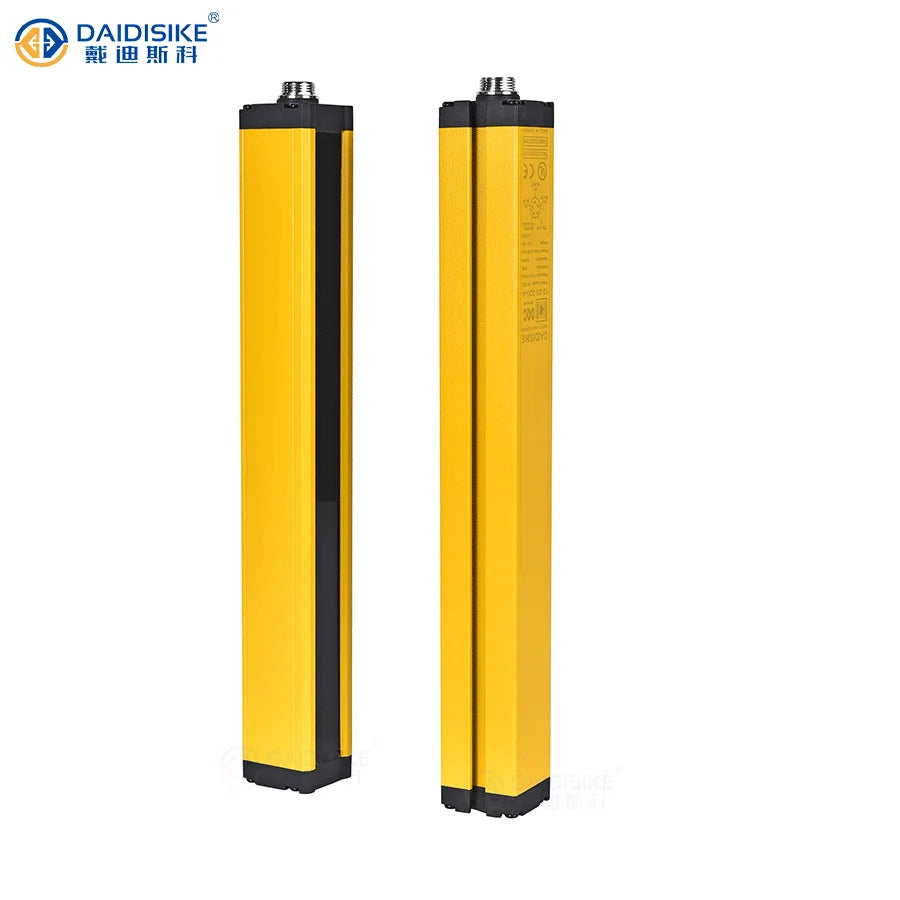

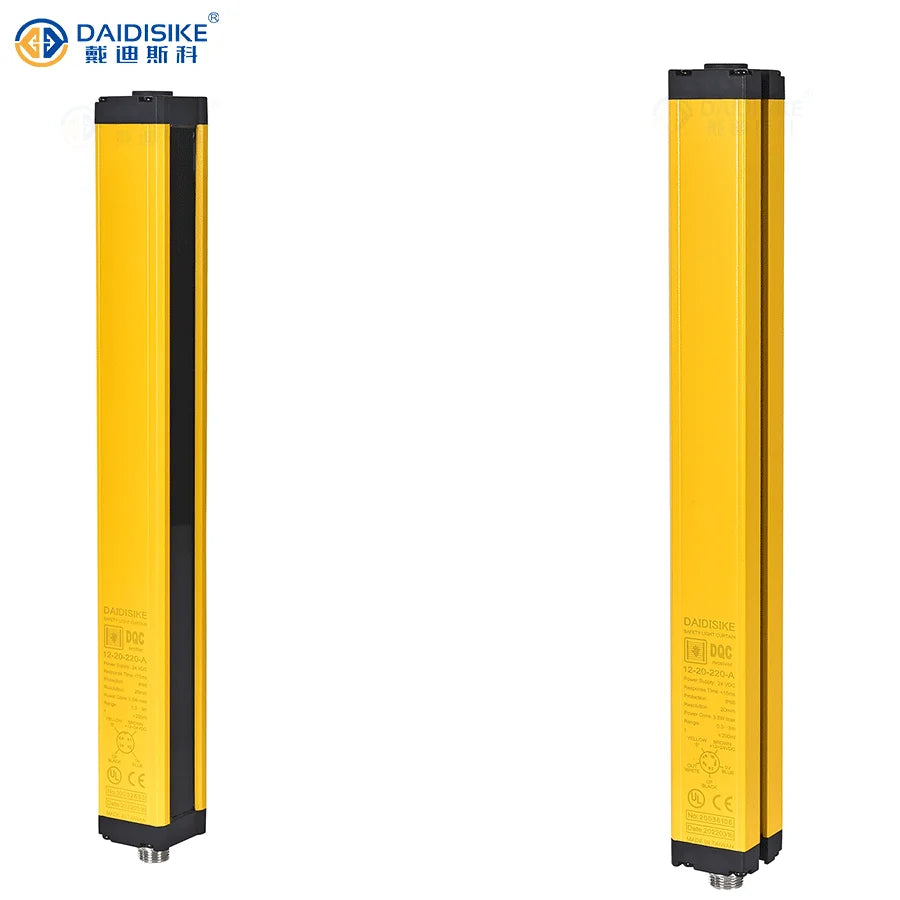

Product name: Universal safety light curtain

Protection level: IP65

Response time: ≤15ms

Series: DQC

Theory: infrared

Type: Hand Tool Parts,safety light curtain

Use: Industrial safety protection

Hello dear buyer, welcome to our store. If you need other models of this product, please contact me and I will send you a product link for purchase! Email: 2937038264@qq.com whats APP:+8616680517119



Products Description

Model Number	DQC Universal safety light curtain
Light curtain form	Opposite type
Beam pitch	10;14;20;25;30;40;80mm
check the accuracy	18;22;28;33;38;48;88mm
Detection distance	30~3000mm ,30~6000mm
Response time	≤15ms
Output	NPN/PNP type, with current 500 mA and voltage less than 1.5 v, polarity, short circuit and overload protection
Anti light interference	10000Lux
Outline size	30x30xLmm
Protection level	IP65
Controller	DQCA;DQCA2
Supply voltage	DC12/24V;AC110-220V
Consumption current	≤200mA
Light source	Modulated Infrared LED

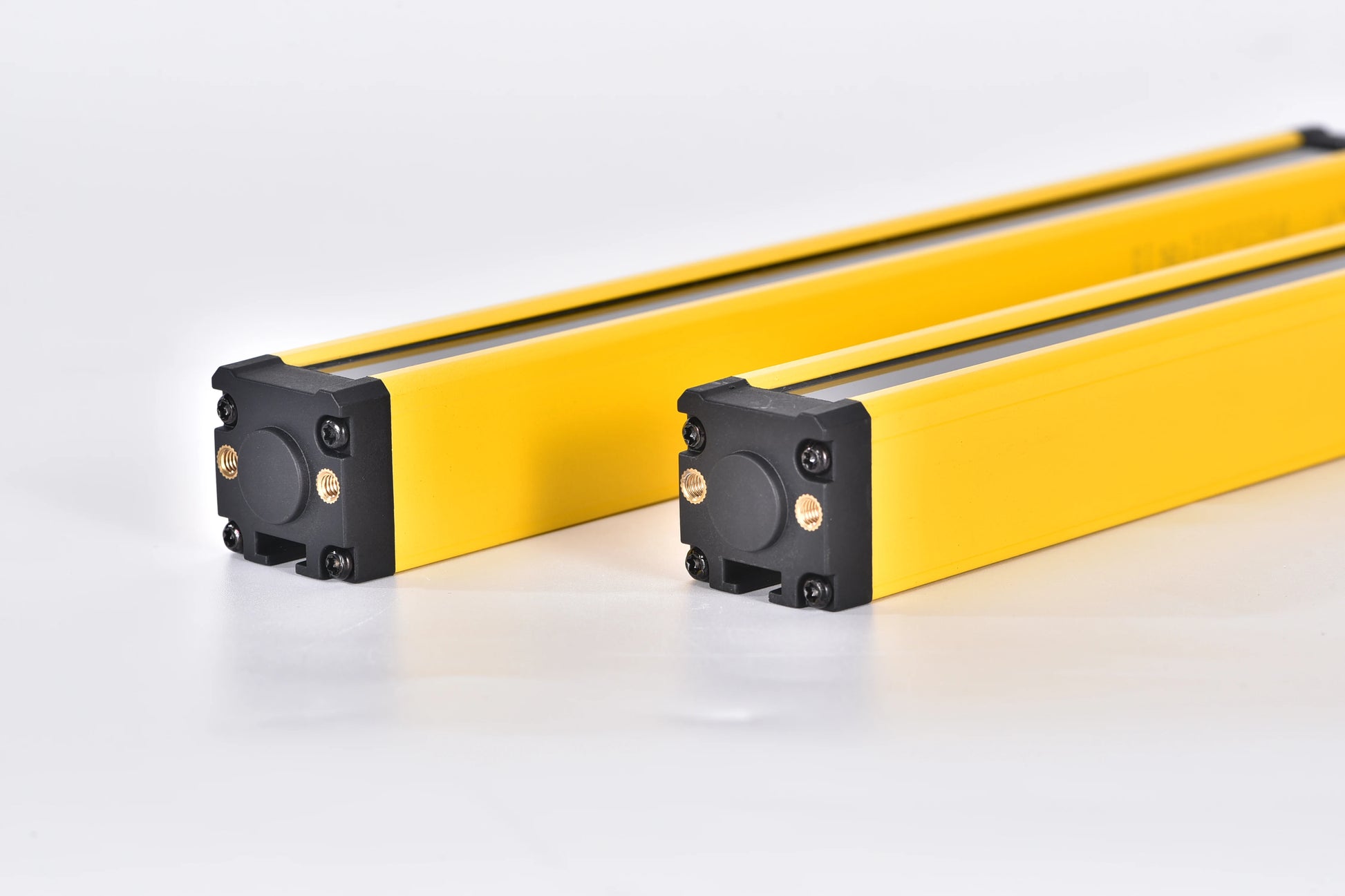

Shell material	Aluminum alloy;End cover: ABS reinforced nylon
